TPHD402 is an HDBaseT twisted pair for HDMI, IR & RS232 at 70M transmission. It includes transmitter(TPHD402T) and receiver(TPHD402R), supports HDMI 1.4 and is HDCP compliant. It’s a high performance extender for the control room, educational facilities, commanding center, home cinema etc.

• Integrated HDBsaseT technology
• Support HDMI 1.4, 3D & 4K x 2K.
• 70M(230ft) transmission for HDMI, IR & RS232
• Bi-Directional IR & RS232 pass through
• Compatible with CAT5e/6/7 cable

Technical Documents

Manual

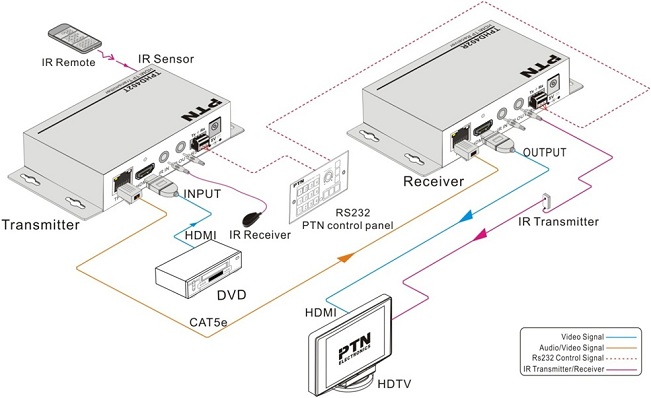

Diagram
